Designing Stainless Steel Mixing Tanks: A Comprehensive Guide

16 September 2024|Craft Brewery, Craft Distillery, Design, Equipment Selection, Heat Transfer, Mixing tanks, Stainless Equipment

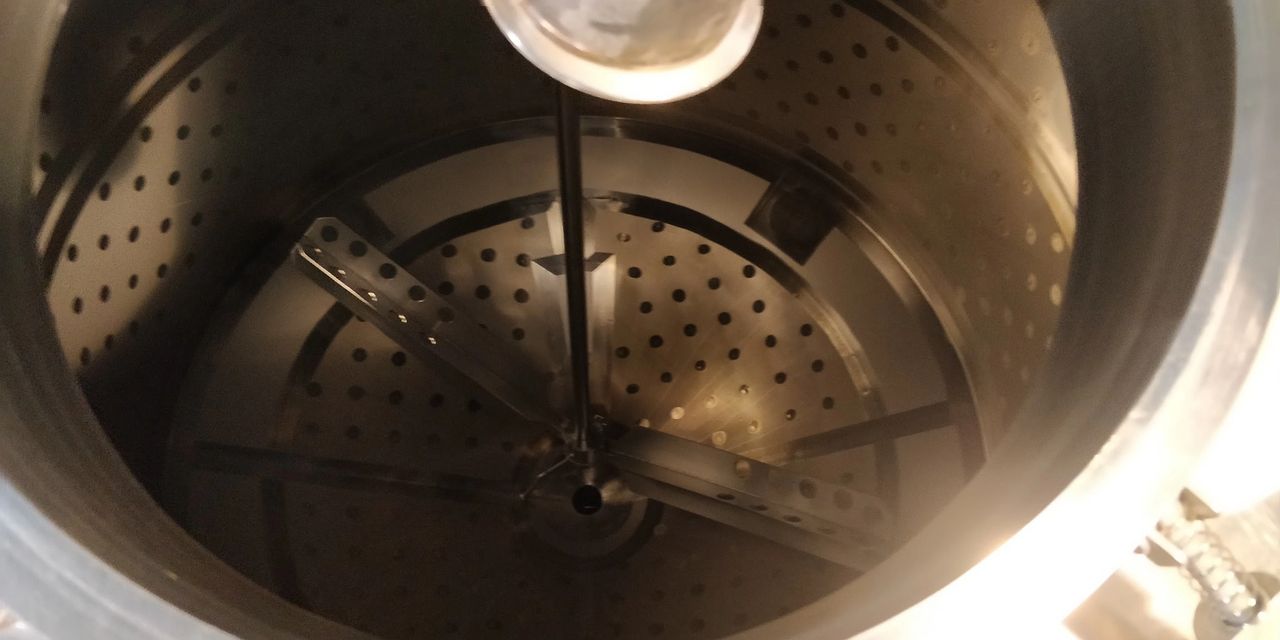

Jacketed Mixing Tank

Mixing tanks are essential components in various industries, from food and beverage processing to chemical manufacturing. The design of a mixing tank significantly impacts its efficiency, product quality, and overall process performance. In this blog post, we'll delve into the key factors to consider when designing mixing tanks.

Tank Type Selection

The first step in designing a mixing tank is to determine the appropriate type. The choice depends on the specific application and the properties of the materials being mixed. Common tank types include:

  • Batch tanks: Used for mixing smaller batches of materials.
  • Continuous tanks: Ideal for large-scale production where materials are continuously added and removed.
  • Agitated tanks: Equipped with agitators to promote mixing.
  • Non-agitated tanks: Rely on natural convection for mixing.

Size and Capacity

The size of the mixing tank should be determined based on the desired production rate and batch size. Factors to consider include:

  • Volume requirements: Calculate the necessary volume based on the quantity of materials to be mixed.
  • Headspace: Allow for sufficient headspace to prevent overflow during mixing.
  • Future growth: Consider potential future expansion and design the tank with scalability in mind.

Material Selection

The material used for the mixing tank should be compatible with the substances being mixed and resistant to corrosion. Common materials include:

  • Stainless steel: A versatile and durable option for many applications.
  • Glass-lined steel: Provides excellent corrosion resistance and is suitable for highly corrosive substances.
  • Plastic: Can be used for certain applications, but may have limitations in terms of temperature and chemical resistance.

Agitation System

The agitation system plays a crucial role in ensuring effective mixing. Factors to consider include:

  • Impeller type: Choose an impeller that is suitable for the specific mixing requirements (e.g., propeller, turbine, anchor).
  • Impeller size and placement: The size and placement of the impeller will affect the mixing efficiency.
  • Power requirements: Calculate the necessary power input based on the tank size, viscosity of the materials, and desired mixing intensity.

Baffles

Baffles are used to prevent swirling and improve mixing efficiency in cylindrical tanks. The number, size, and placement of baffles should be carefully considered.

Temperature Control

For processes that require temperature control, heating or cooling systems can be incorporated into the mixing tank design. Options include:

  • Jacketed tanks: Tanks with a double-walled construction that allows for heating or cooling.
  • Internal coils: Coils placed inside the tank to transfer heat or cold.

By carefully considering these factors, you can design a mixing tank that meets your specific needs and ensures optimal performance. If you require expert assistance in designing mixing tanks, DynaPro can provide customised solutions tailored to your requirements.
