Process Cooling Equipment (Cooling Towers, and Industrial Chiller Units)

A chiller is a machine that removes heat from a liquid coolant, typically water or a water-glycol mixture. This chilled liquid is then circulated through a heat exchanger to cool equipment, processes, or even entire buildings. Chillers are essential components in various industries, including:

• HVAC (Heating, Ventilation, and Air Conditioning): They provide chilled water for air      conditioning systems in commercial and residential buildings.
• Manufacturing: They cool  down machinery and processes that generate excess heat.
• Food & Beverage: They maintain the desired temperature for food processing and storage.
• Data Centers: They prevent overheating of sensitive computer equipment.

Working Principle:

Chillers operate based on the principles of thermodynamics, utilising a vapor-compression cycle. Here's a breakdown of the key components and their function:

1. Evaporator: The chilled  water enters the evaporator, where it absorbs heat from the surrounding environment (usually air or another coolant). This causes the liquid refrigerant inside the evaporator to boil and turn into gas at a low pressure.

2. Compressor:The low-pressure refrigerant gas is drawn into the compressor, which increases its pressure and temperature.

3. Condenser:The hot, high-pressure refrigerant gas then enters the condenser. Here, it releases its heat to the surrounding environment (typically air or water). This heat transfer causes the refrigerant to condense back into a liquid state.

4. Expansion Valve: The high-pressure liquid refrigerant then passes through an expansion valve. This valve reduces the pressure of the refrigerant, causing it to cool down significantly.

5. Repeat Cycle: The chilled, low-pressure refrigerant returns to the evaporator, and the cycle repeats.

Types of Chillers:

There are two main types of chillers based on the method they use to reject heat:

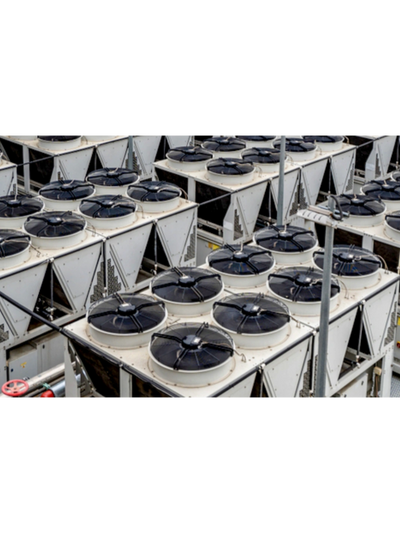

· Air-Cooled Chillers: These chillers use fans and air-cooled condensers to reject heat to the ambient air. They are typically smaller and more cost-effective but less efficient in hot climates.

· Water-Cooled Chillers: These chillers use water from a cooling tower to reject heat from the refrigerant. They are more efficient but require a separate cooling tower system and are generally larger in size.

Additional Considerations:

• Refrigerant: Different refrigerants have varying environmental impacts and efficiency levels.
• Capacity: Chillers are rated by their cooling capacity, measured in tons of refrigeration (TR). A      1-ton chiller can remove heat equivalent to melting 1 ton of ice in 24      hours.
• Efficiency: The Coefficient of Performance (COP) measures chiller efficiency. A higher COP      indicates less energy consumption for the same cooling output.

Benefits of Chillers:

• Precise Temperature Control:  Chillers offer precise control over the temperature of the coolant, which is vital for many processes.
• Versatility: Chillers can be used for a wide range of cooling applications.
• Scalability: They come in  various sizes to suit different cooling requirements.
• Closed-Loop System: The refrigerant remains within a closed loop, minimizing environmental impact.

In conclusion, chillers are vital components in various industries, providing efficient and precise cooling solutions. Understanding their working principles, types, and considerations is crucial for selecting the right chiller for your specific needs.

Cooling towers are massive heat exchangers that remove heat from water used in various industrial processes. They are often seen as tall, plume-emitting structures alongside power plants, refineries, and even large buildings. Here's a technical breakdown of how they work:

Function:

Cooling towers don't directly cool air or buildings. Instead, they cool down a heated water stream used in industrial processes. This hot water is typically used to cool down machinery, condense steam in power generation, or regulate building temperatures in HVAC systems. The cooling tower rejects the heat from the water to the atmosphere, allowing the cooled water to be reused in the process.

Working Principle:

Cooling towers utilise two main mechanisms for heat transfer: evaporation and convection. Here's a step-by-step explanation:

1.  Warm Water Distribution: Hot water from the industrial process is pumped to the top of the cooling tower.
2. Water Distribution System: This system evenly distributes the hot water over a large surface area, often using spray nozzles or splash fills.
3. Airflow:Large fans located at the bottom or top of the tower draw air upwards through the structure.
4. Evaporative Cooling: A small portion of the distributed water evaporates into the air stream. This evaporation absorbs heat from the remaining water, causing it to cool down significantly. This principle is similar to how sweat cools our bodies.
5. Heat Rejection: The warmed, moist air is then drawn out of the tower and released into the atmosphere. This carries away the heat extracted from the water.
6. Cooled Water Collection: The cooled water collects at the bottom of the tower basin and is then pumped back to the industrial process for reuse.

Types of Cooling Towers:

There are three main types of cooling towers, each with specific advantages:

· Natural Draft Cooling Towers: These are the tallest and most recognisable type, relying on natural convection for air circulation. They are efficient but require a large footprint and are expensive to build.

• Forced Draft Cooling Towers: These towers use fans located at the bottom to draw air through the structure. They are more compact and offer better control over airflow but consume more energy from the fans.
• Induced Draft Cooling Towers: These towers use fans located at the top to exhaust the warmed air. They offer good air distribution and lower noise levels but can be less efficient than forced draft designs.
• Considerations:
• Cooling Capacity: Cooling towers are rated by their capacity to remove heat, measured in tons of refrigeration (TR).
• Water Quality: The quality of the makeup water entering the tower can impact performance and require water treatment systems.
• Environmental Impact: The water vapour plume from cooling towers can contribute to localised humidity and fogging. Regulations may limit water usage or require plume abatement technologies.
• Benefits of Cooling Towers:
• Efficient Heat Rejection: Cooling towers offer a cost-effective way to remove large amounts of heat from water used in industrial processes.
• Closed-Loop System: The water remains within a closed loop, minimising environmental impact compared to once-through cooling systems using rivers or lakes.
• Water Savings: By providing a way to reuse cooling water, cooling towers can significantly reduce water consumption for industrial processes.

Conclusion:

Cooling towers are crucial components in various industries, playing a vital role in managing industrial heat loads and promoting water conservation. Understanding their principles of operation, types, and considerations is essential for optimising cooling systems in various applications. If you need cooling in your process? Drop us a line.
