Honey processing Equipment

A honey processing plant is a facility dedicated to transforming raw honey harvested from beehives into various types of honey products for consumers. Here's a breakdown of the key equipment and processes involved:

1. Honey Receiving and Inspection:

• Honey Receiving: Harvested honeycombs are delivered from beekeepers in frames or containers.
• Inspection: Honey is visually inspected for quality and potential impurities like wax or bee      parts.

2. Uncapping:

• Uncapping Machine:
  • Function: Removes the thin wax layer (capping) covering the honeycomb cells to expose the honey inside.
  • Technical Description: Machines can be manual (using a heated knife) or semi-automatic       (utilising rollers or brushes with adjustable temperature settings to melt the wax caps).

3. Honey Extraction:

• Honey Extractor:
  • Function: Extracts honey from the uncapped honeycomb frames by centrifugal force.
  • Technical Description: A rotating drum spins the frames, forcing the honey out of the cells due to gravity and centrifugal force. Different sizes and capacities of extractors are available depending on production volume.

4. Straining and Filtering:

• Strainer:
  • Function: Removes large bee parts and other debris from the extracted honey.
  • Technical Description:  Coarse mesh screens or filters are used to capture larger particles.
• Honey Filter:
  • Function: Removes finer impurities, wax particles, and air bubbles from the honey for a smooth and clear product.
  • Technical Description: Various filtration options exist, including settling tanks, mesh filters,       and cartridge filters with different pore sizes for varying degrees of filtration.

5. Creaming (Optional):

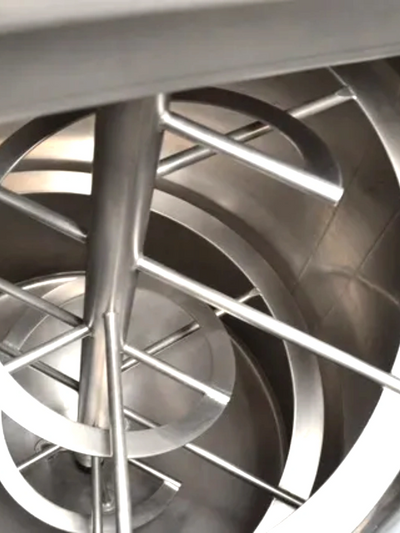

• Crystallisation Tank (Optional):
  • Function: Controls the crystallisation process for creating creamed honey with a smooth,       spreadable texture.
  • Technical Description: Controlled temperature and agitation techniques are used to induce the formation of fine, even-sized crystals throughout the honey.

6. Dehumidification (Optional):

• Dehumidifier (Optional):
  • Function: Reduces moisture content in the honey, if necessary, to ensure proper storage and       prevent fermentation.
  • Technical Description: Air dehumidifiers lower the humidity level in the processing area,       helping to remove excess moisture from the honey.

7. Packaging and Storage:

• Honey Filling Machine:
  • Function: Automatically fills honey into various sized containers (jars, bottles, tubs) for       retail or wholesale distribution.
  • Technical Description: Filling machines can be volumetric (dispense a specific volume) or       weigh-based (fill to a target weight) depending on production needs.
• Capping Machine:
  • Function: Seals the filled containers with tamper-evident caps or lids.
• Labeling Machine:
  • Function: Applies labels with information about the honey type, origin, weight, and nutritional content.
• Storage: Packaged honey is stored in a cool, dark environment to maintain quality and prevent      spoilage.

Additional Considerations:

• Honey Grades: Processing techniques may vary depending on the desired honey grade (raw, filtered, creamed, etc.).
• Quality Control: Honey is tested for moisture content, sugar levels, and potential contaminants to ensure adherence to food safety standards.
• Waste Management: Wax capping removed during uncapping can be processed for beeswax products.
• Automation Level: Honey processing plants can range from small-scale operations with manual      equipment to fully automated facilities with integrated control systems.

By understanding the technical description, processing stages, and key considerations for honey processing plants, we gain insight into the transformation of raw honey into a variety of delicious and healthy honey products enjoyed by consumers worldwide. if you need more information on setting up your Honey processing plant feel free to drop us a line.
