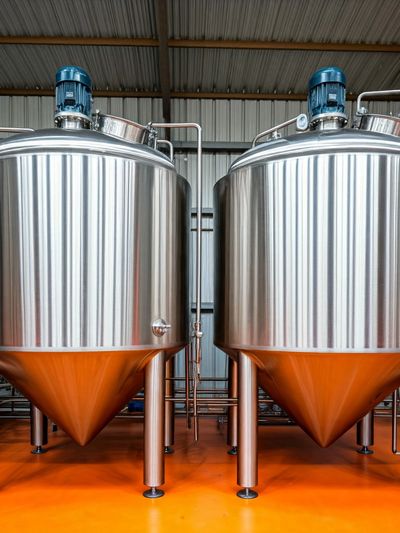

Stainless steel Mixing Tanks

A mixing tank, also known as a mixing vessel, blender tank, or mixer tank, is a versatile piece of equipment used in various industries for blending, mixing, emulsifying, and homogenising different materials.

• Tank: The main vessel where the materials are held and mixed. Material can be constructed from      various options like stainless steel, carbon steel, or plastic depending on the application and compatibility with the materials being mixed.
• Agitator: A rotating shaft with an impeller attached located at the bottom of the tank. The impeller design and rotation speed determine the mixing action and efficiency. Common agitator types include:
  • Propeller: General-purpose impeller for blending liquids of similar viscosity.
  • Turbine: Provides high shear for efficient mixing and dispersion of solids or immiscible       liquids.
  • Paddle: Used for gentle mixing or suspending solids without excessive shear.
• Drive System: Motor and gearbox that provide power to the agitator shaft for rotation.
• Inlet and Outlet Ports: Connections for introducing materials into the tank and withdrawing the      mixed product.
• Heating/Cooling Jacket (Optional): Double-walled jackets can be used to circulate hot or cold water/fluid to  control the temperature of the mixture within the tank.
• Level Control System (Optional): Sensors monitor the liquid level in the tank and regulate the filling or emptying process.
• Instrumentation and Control System (Optional): Sensors monitor temperature, pressure, and      agitation speed. A control system can adjust operating parameters like agitator speed and jacket temperature based on desired mixing conditions.

1. Material Loading: The components to be mixed are introduced into the tank through the inlet      ports.
2. Agitation: The agitator  rotates, creating a flow pattern within the tank that blends and disperses      the materials. The specific impeller design and speed determine the mixing intensity and effectiveness.
3. Heating/Cooling (Optional): If necessary, the jacket system circulates hot or cold fluid to maintain the desired temperature for the mixing process.
4. Mixing Time: The duration of mixing depends on various factors like material properties, desired      level of homogeneity, and viscosity.
5. Product Discharge: The mixed product is discharged from the tank through the outlet port for      further processing or packaging.

• Food and Beverage: Mixing ingredients for various products like syrups, sauces, doughs, and      beverages.
• Chemical Processing: Mixing reactants, blending solutions, and preparing emulsions.
• Pharmaceutical: Mixing pharmaceutical ingredients, preparing suspensions, and homogenising      solutions.
• Cosmetics: Mixing creams, lotions, and other cosmetic products.
• Paint and Coatings: Mixing pigments, resins, and solvents for paints and coatings.
• Wastewater Treatment: Mixing chemicals for wastewater treatment processes.

• Tank Capacity: Size of the tank needs to be sufficient for the required volume of material to be      mixed.
• Material Compatibility:Tank material must be compatible with the chemicals being mixed to prevent corrosion and contamination.
• Mixing Requirements: Desired level of mixing (blending, homogenisation, dispersion) dictates      the type of agitator needed.
• Viscosity of Materials: Viscosity of the materials to be mixed influences the impeller selection      and motor power requirements.
• Batch vs. Continuous Operation: Whether the mixing process involves individual batches or a continuous flow determines the design and size of the tank and associated equipment.
• Cleaning and Maintenance: Ease of cleaning and accessibility for maintenance are important      considerations.

By understanding the technical description, components, operating principle, applications, and selection factors of mixing tanks, we gain insight into this essential equipment used for efficient and controlled mixing in various industrial processes.
