Filter press

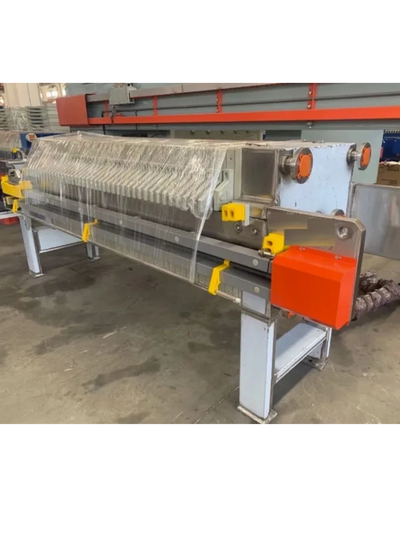

 A industrial filter press is a pressure filtration device used for separating solid and liquid phases in a suspension. It's commonly employed in various industrial applications where efficient dewatering and high solids capture are required. Here's a breakdown of its key components and functionality:

Components:

• Frame: A sturdy, rigid structure that houses the filter plates and provides overall support for the press. It can be constructed from carbon steel, stainless  steel, or other materials depending on the application requirements.
• Filter Plates: These are the core components where Filtration occurs. Typically rectangular or square in shape, they are made  from various materials like stainless steel, polypropylene, or ceramic, depending on the process conditions and compatibility with the feed material. Filter plates have internal channels that allow filtrate (clarified liquid) to flow through them while retaining the solids on the surface.
• Filter Cloths: These are specialised fabrics placed on the filter plates to enhance cake formation and prevent solids from passing through the channels. They come in various materials like cotton,  polyester, or polypropylene, chosen based on factors like particle size, temperature, and chemical compatibility.
• Feed  Chamber and Channels: The feed chamber is where the slurry  (suspension) is introduced. Internal channels within the frame and plates  direct the slurry towards each plate chamber.
• Filtrate Discharge Channels: These channels collect the clarified  liquid (filtrate) that passes through the filter cloths and plate channels.
• Cake  Discharge System: Mechanisms are incorporated to allow for easy removal of the solid residue (cake) formed after filtration. This might involve manual opening of the press and scraping the cake, or   automated systems like plate shifters that help discharge the cake efficiently.
• Hydraulic or Pneumatic Closing System: A powerful hydraulic filter press or pneumatic system applies force to compress the filter plates, ensuring a tight seal and efficient filtration.

Operation:

1. Feed Introduction: The slurry is pumped into the feed  chamber of the filter press.
2. Filtration: As the slurry enters the chambers between the filter plates, the liquid  component (filtrate) passes through the filter cloths and plate channels, while the solid particles are captured on the cloth surface, forming a  filter cake.
3. Pressurisation: The  closing system applies pressure to the plates, further enhancing filtration efficiency.
4. Cake Discharge: Once filtration is complete, the pressure is released, and the filter press is opened. The filter cake can  be manually scraped off the plates or discharged using an automated system.
5. Cleaning: After cake discharge, the plates and filter cloths are thoroughly cleaned for  reuse in subsequent filtration cycles.

Advantages of Filter Presses:

• High Solids Capture: Filter presses can achieve very high solids capture rates, making them suitable for applications requiring  excellent dewatering efficiency.
• Wide Range of Materials: They can handle a wide variety of feed materials with different particle sizes and characteristics.
• Scalability: Filter presses are available in various sizes to suit different processing capacities.
• Batch Operation: They can be operated in batch mode,  allowing for flexibility in handling different materials or processes.
• Durable  Construction: Their robust construction makes them  suitable for harsh industrial environments.

Disadvantages of Filter Presses:

• Batch Processing: The batch operation can be less  efficient compared to continuous filtration processes.
• High  Initial Cost: The initial investment cost of a filter  press can be relatively high.
• Maintenance Requirements: Regular cleaning and maintenance of the filter cloths and plates are necessary.
• Large  Footprint: Larger models of filter presses can  require significant space for installation and operation.

Applications of Filter Presses:

• Chemical  Processing: Dewatering of precipitated solids,  catalyst recovery, etc.
• Food and Beverage Industry: Juice clarification, wastewater treatment, etc.
• Pharmaceutical Industry: Separation of product crystals, purification processes, etc.
• Mining and Minerals Processing: Dewatering of mineral slurries, concentrate recovery, etc.
• Wastewater  Treatment: Removal of suspended solids from  industrial wastewater.

By understanding the technical aspects and functionalities of a filter press, you can assess its suitability for your specific solid-liquid separation needs in various industrial applications.
