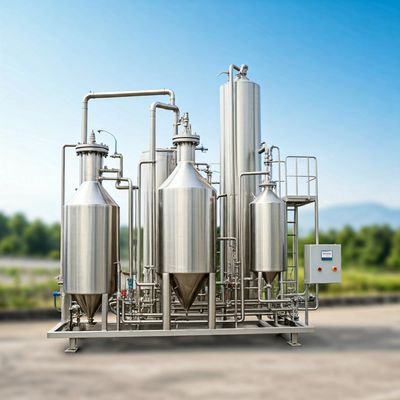

Extraction Plant

An extraction plant is a facility designed to isolate desired compounds from a raw material using a solvent or other separation technique. These extracted materials find applications in various industries, including:

• Food and Beverage: Extracting flavours, essential oils, and colorants from plant materials.
• Pharmaceutical: Isolating  active ingredients from plants and other natural sources for medicinal      use.
• Cosmetics: Extracting fragrances, oils, and other components for cosmetic products.
• Chemical Processing: Separating valuable chemicals from various raw materials.

General Process Flow:

While the specific processes may vary depending on the material being extracted and the desired product, a general extraction plant follows these steps:

1. Preparation:

• Grinding/Milling: Raw materials are often crushed or ground into smaller particles to increase  surface area and improve extraction efficiency.
• Washing/Drying (Optional): The raw material might be washed to remove impurities and dried to  control moisture content.

2. Extraction:

• Solvent Extraction: The  most common method, where the raw material is contacted with a solvent  that dissolves the desired compounds. Different types of extractors can  be used, such as:
  • Soaking Tanks: Simple tanks where the material is submerged in the solvent for a specific        time.
  • Percolation Columns: The solvent slowly flows through a packed bed of the raw material,        facilitating extraction.
  • Soxhlet Extractors: A  closed-loop system that continuously cycles hot solvent through the  material for efficient extraction.
• Supercritical Fluid Extraction (SFE) (Optional): Uses a supercritical fluid (a gas with       liquid-like properties) as the solvent for selective extraction and cleaner products.
• Other Techniques (Optional): Depending on the material and desired product, alternative methods like  Steam distillation or pressing might be employed.

3. Separation:

• Filtration: The solid material (called the residue) is separated from the solvent containing       the extracted compounds using filters.
• Evaporation/Distillation: The solvent is removed from the extract using evaporation or distillation techniques, leaving behind the concentrated extract.

4. Purification (Optional):

• Crystallisation: Further purification of the extract may involve crystallisation techniques to       isolate specific components.
• Chromatography (Optional): Advanced separation techniques like chromatography can be used for       high-purity extracts.

5. Drying and Packaging:

• Drying: The purified extract is dried to a desired moisture level to ensure stability and       prevent spoilage.
• Packaging: The finished  extract is packaged in appropriate containers for storage and       distribution.

Additional Considerations:

• Solvent Selection: Choosing the right solvent is crucial for efficient extraction and product      quality. The solvent should selectively dissolve the desired compounds and be compatible with the extraction process.
• Safety: Many solvents used in extraction are flammable or hazardous. Proper handling and safety      measures are essential.
• Waste Management: Spent solvents and solid residues from the extraction process need to be      disposed of safely and responsibly according to environmental regulations.
• Automation: Extraction plants can range from simple manual operations to fully automated      facilities with integrated process control systems.

Benefits of an Extraction Plant:

• Efficient Production: Extracts valuable compounds in high yields.
• Consistent Quality: Controlled processes ensure consistent product quality.
• Scalability: Plants can be designed for various production capacities.
• Product Variety: Can be adapted to extract different compounds from diverse raw materials.

By understanding the technical description, process flow, and key considerations for extraction plants, you gain insight into this essential technology used to isolate and obtain valuable materials from various sources for use in a wide range of industries.
